MULTILIFT TALON

DEFENSE LOGISTICS MADE SMARTER AND SAFER

Reliable delivery of supplies is critical to logistical operations – it's the lifeline of defensive success. Harsh conditions demand peak performance, where every second counts and safety is non-negotiable.

MULTILIFT Talon is your in-cabin powerhouse, redefining Container handling in the toughest of conditions without sacrificing Flatrack performance. Developed from battle-proven technology, it represents Hiab's new generation of defense logistics Load Handling Systems. This system combines the functionality of in-service products with the latest advancements in automation and technology.

MULTILIFT Talon

  • FASTER – Configuration changes between Flatrack and Container modes are performed automatically from within the cab. Automatic functions and fast-speed features significantly reduce cycle times.
  • SMARTER – The system features a simple and compact user interface, operable by a single person (the driver). The MULTILIFT HiVision system provides operator assistance for quick and efficient loading/unloading. The new Liftframe design enhances performance in challenging conditions (roll pitch & yaw) and lifting partially submerged Containers. The unique design of the rear assembly enables the handling of a wide variety of Flatracks without any performance loss.
  • SAFER – All routine operations are conducted from within the cab, without external manual intervention during configuration changes between Flatrack and Container modes. The system ensures automatic locking to the ISO Container using both upper and lower corner castings for loading/unloading. Both ISO Containers and Flatracks are automatically secured to the vehicle for transport.

Get to know MULTILIFT Talon

The MULTILIFT Talon is a versatile system designed with a focus on interoperability. It is capable of loading, unloading, and securely locking various in-service payload modules for transportation. These include:

  • ISO 668 20’ 1C, 1CC and 1CX freight Containers
  • NATO STANAG 2413 Flatracks
  • DIN 30722 bodies M3 Container Roll in/Out Platform (CROP)
  • MULTILIFT Bridge Adaptor Pallet (BAP)

MULTILIFT Talon

Key features

  • Single-operator use from within the cab
  • Controls can be operated with one hand, allowing the vehicle steering to be controlled with the other hand Enhanced geometry
  • Simple hook shape with integrated safety latch
  • Handling ISO Containers using all 4 end ISO corner castings as described in ISO 3874
  • Capable of loading partially submerged ISO Containers
  • Capable of loading M3 CROPS into ISO Containers
  • Automatic locking of Flatracks and ISO Containers
  • Trailer transfer capability
  • Below ground level pick-up
  • Integrated MULTILIFT HiVision system assists the driver with guidance and engagement to the Flatrack/Container during various stages of loading/unloading
  • Integrated MULTILIFT Digital Active Safe Load Indicator (DASLI), estimates the weight and location of the centre of gravity of the payload on the Flatrack/Container
  • Autonomy focused design - Will support autonomous capabilities

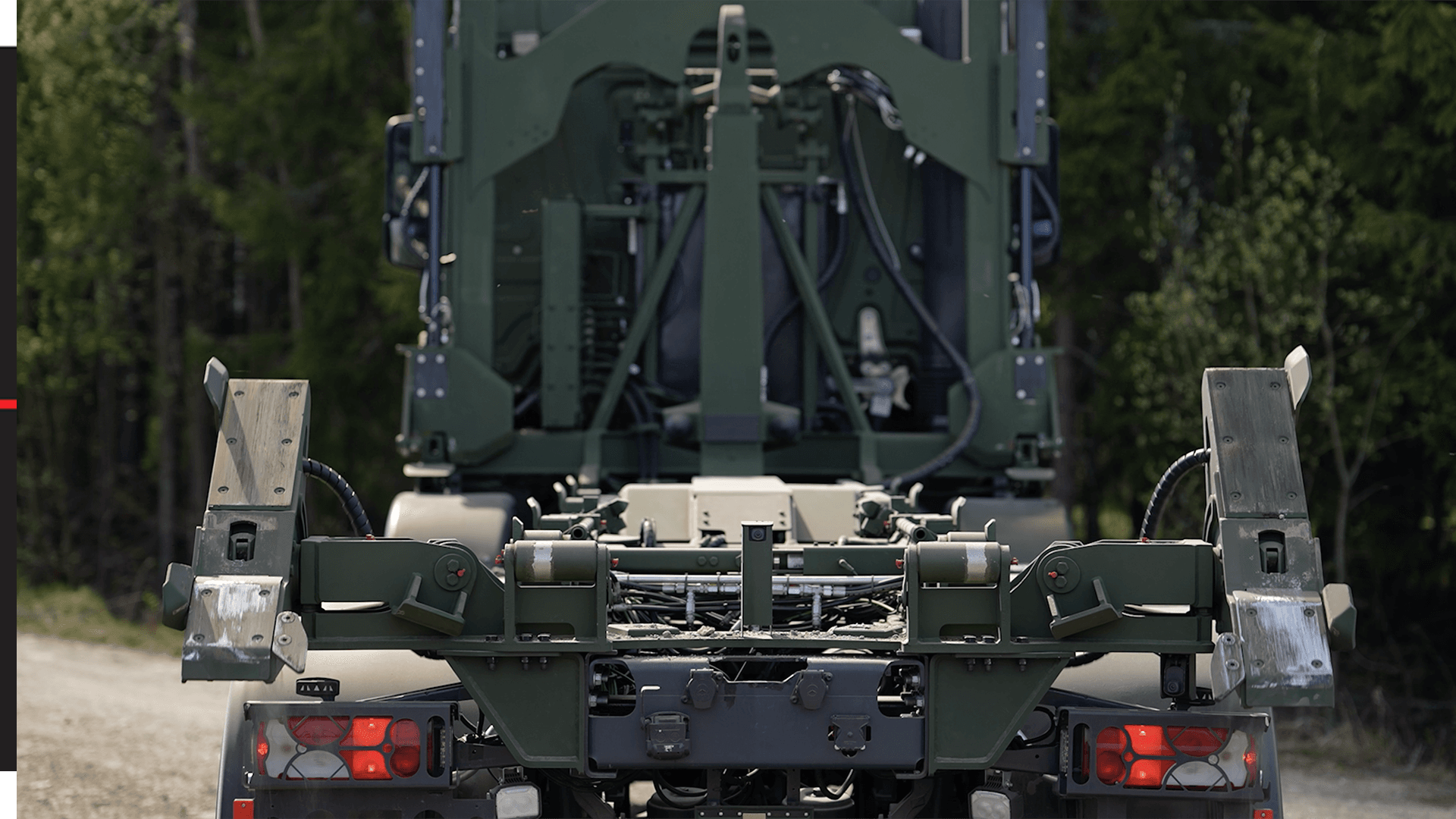

MULTILIFT Talon - Grip

MULTILIFT Talon - container bed folding

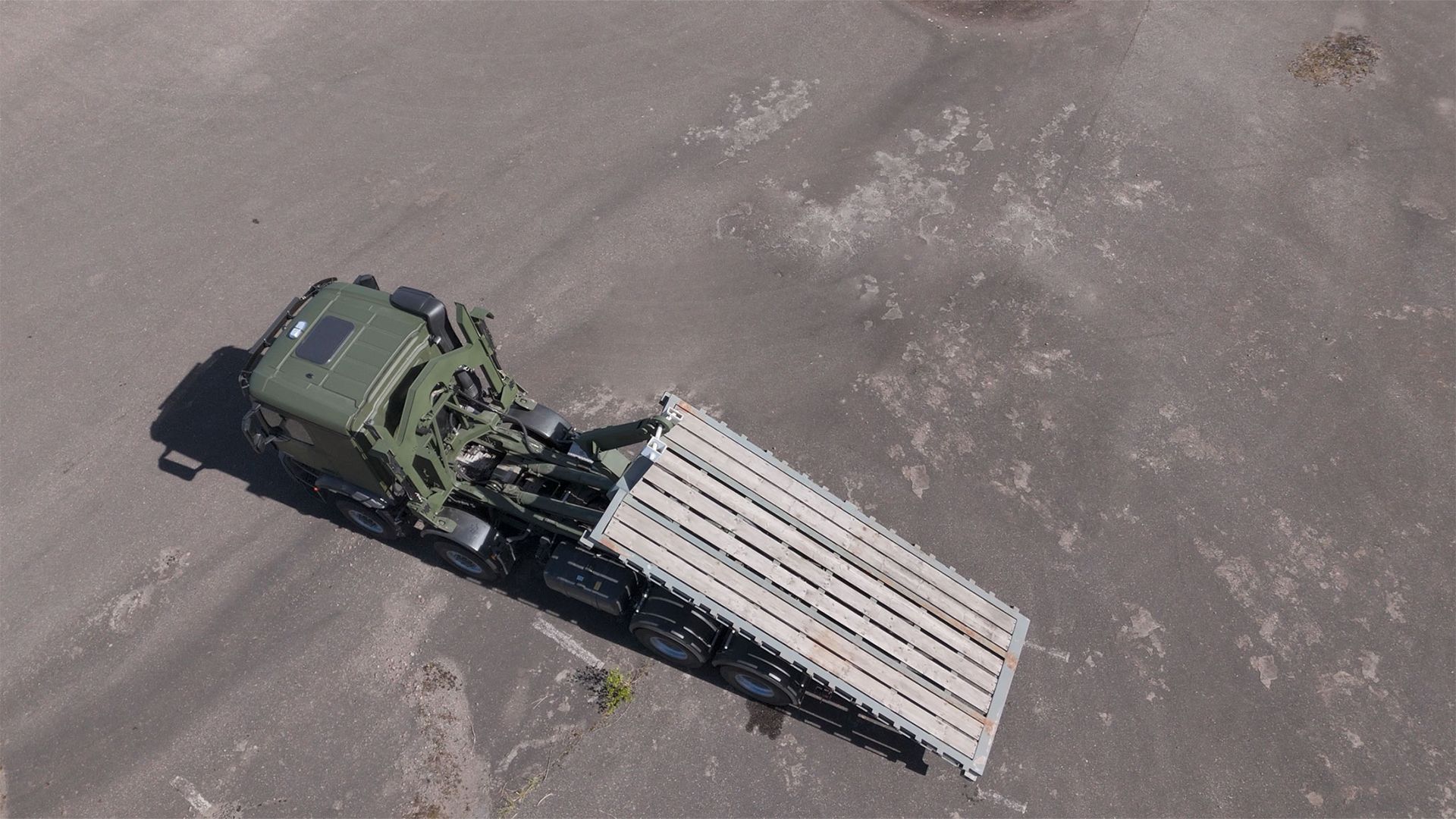

MULTILIFT Talon - Flatrack

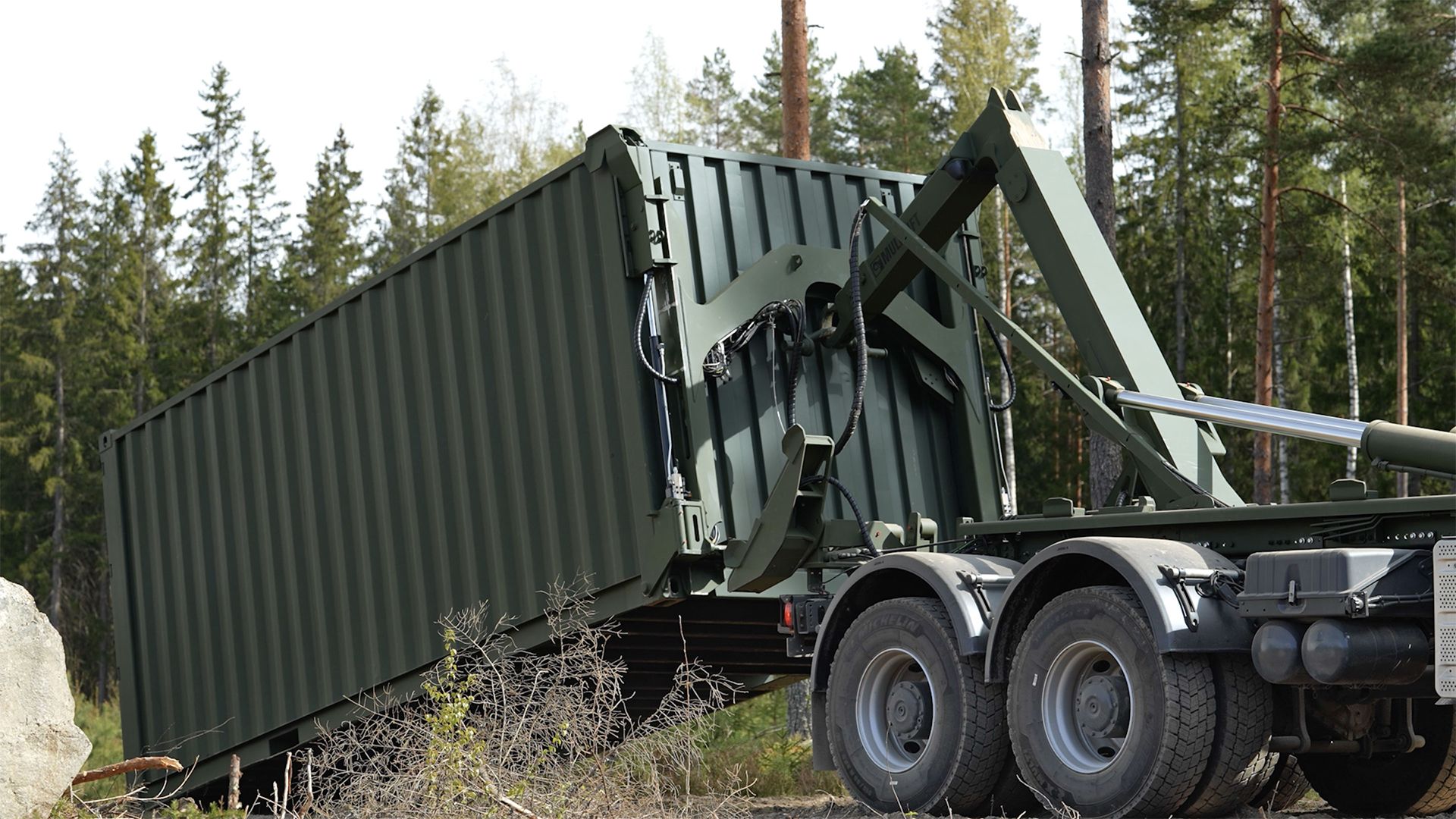

MULTILIFT Talon - Lifting a partially submerged container

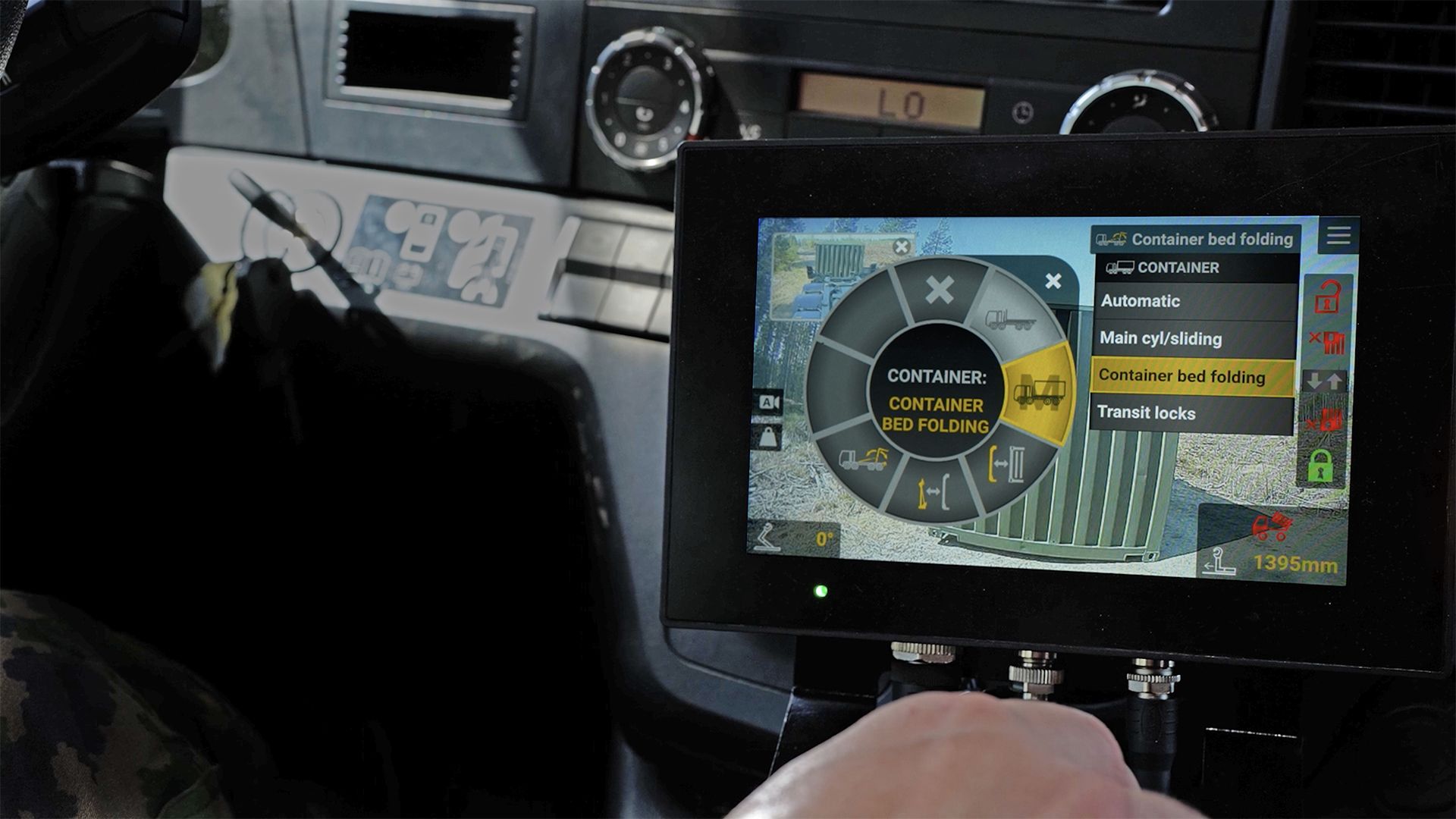

MULTILIFT Talon - User interface


TECHNICAL SPECIFICATIONS

Lifting capacity: 16.5 tonnes

  • The system has a built-in 10% overload capacity for operation in poor ground conditions

Loading performance: Maximises misalignment to Flatrack & Containers

System weight: 3,600 to 4,000 kg, depending on configuration

Cycle times (Note, all times are from Hooklift Home position and may vary by up to 25% depending on final specification and hydraulic oil flow rate):

  • Complete Flatrack loading: 80 seconds
  • Complete Flatrack unloading: 100 seconds
  • Complete Container loading: 180 seconds (includes mode conversion, Liftframe attachment & Container locking)
  • Complete Container unloading: 170 seconds (includes Container unlocking, Liftframe detachment & mode conversion)
  • Conversion between Flatrack and Container mode: 25 seconds

Dimensions:

Total system height (installation level to the top of the Liftframe) with a loaded 1CC container 2916 mm

Flatrack compatibility: According to NATO STANAG 2413 (DIN 30722)

  • Additional locking for Non STANAG compliant Flatracks are available

Container compatibility: According to ISO 668

  • 1C (20 ft long and 8 ft high) freight containers
  • 1CC (20 ft long and 8 ft 6” high) freight containers
  • (20 ft long and minimum 4 ft 3” high)

Control system: Fully electronic auto-sequenced controls including:

  • 24 V DC
  • System diagnostics
  • Integrated safety subsystems to minimise operational errors
  • Complete manual override
  • Operational data logging
  • EMC (MIL-STD-461)
  • ADR (EX/II, EX/III, FL & AT)
  • Blackout lighting function

Hydraulics: Recommended:

  • Flow rate – 100 litres/min
  • Max working pressure – 300 bar
  • Oil tank size – 100 litres
  • Pump – variable
  • Oil compatibility – NATO H540
  • Recovery system
  • Ancillary connections

Operating temperature: From -32°C to +49°C
