Lumber Equipment - Cranes & Forklifts

In the lumber industry, product is always on the move, making it important to have equipment that can keep up with the demand. Lumber cranes and forklifts are two of the most important pieces of equipment in lumber business. When you use equipment from HIAB, your driver can make more lumber deliveries, in less time, with more satisfied customers.

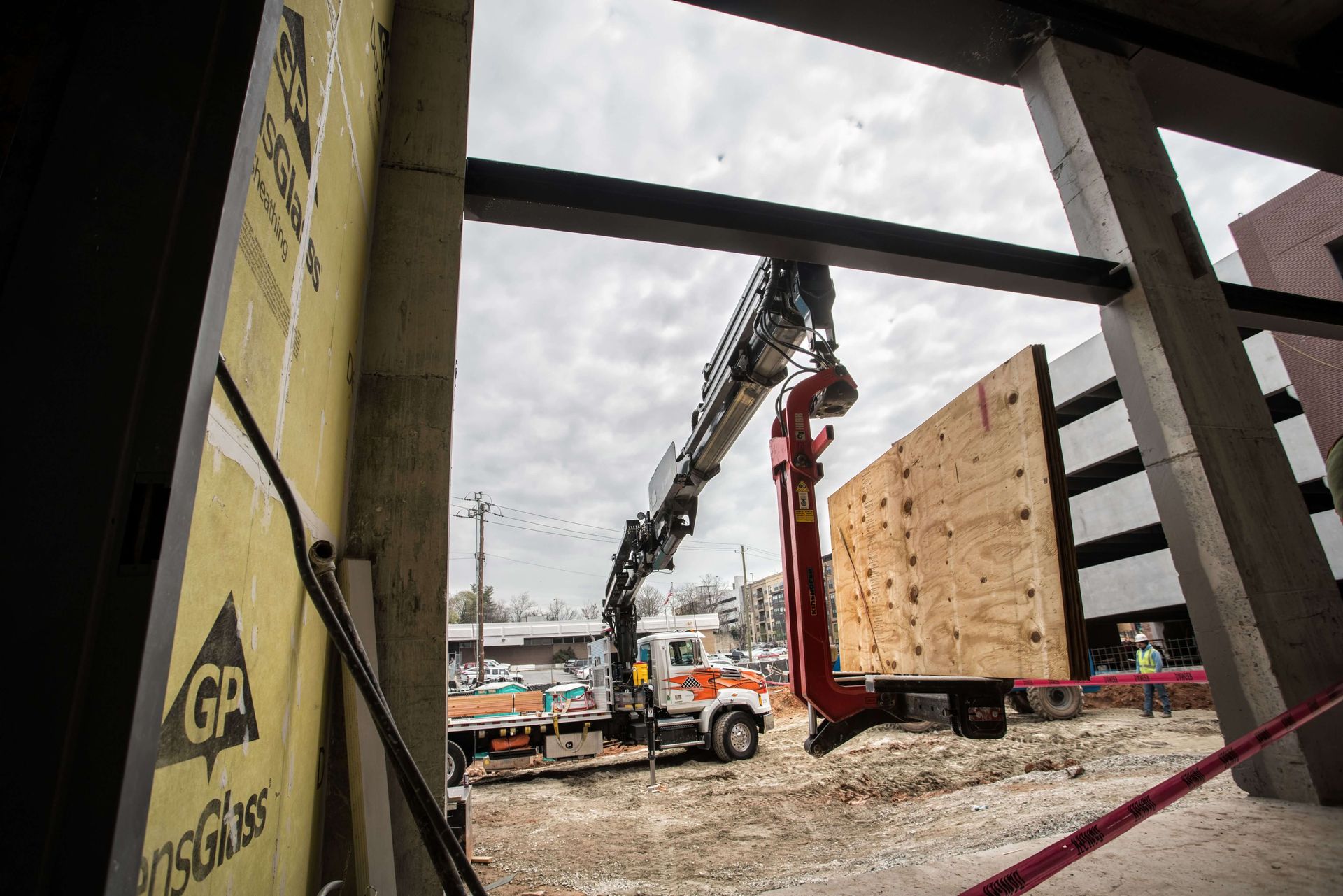

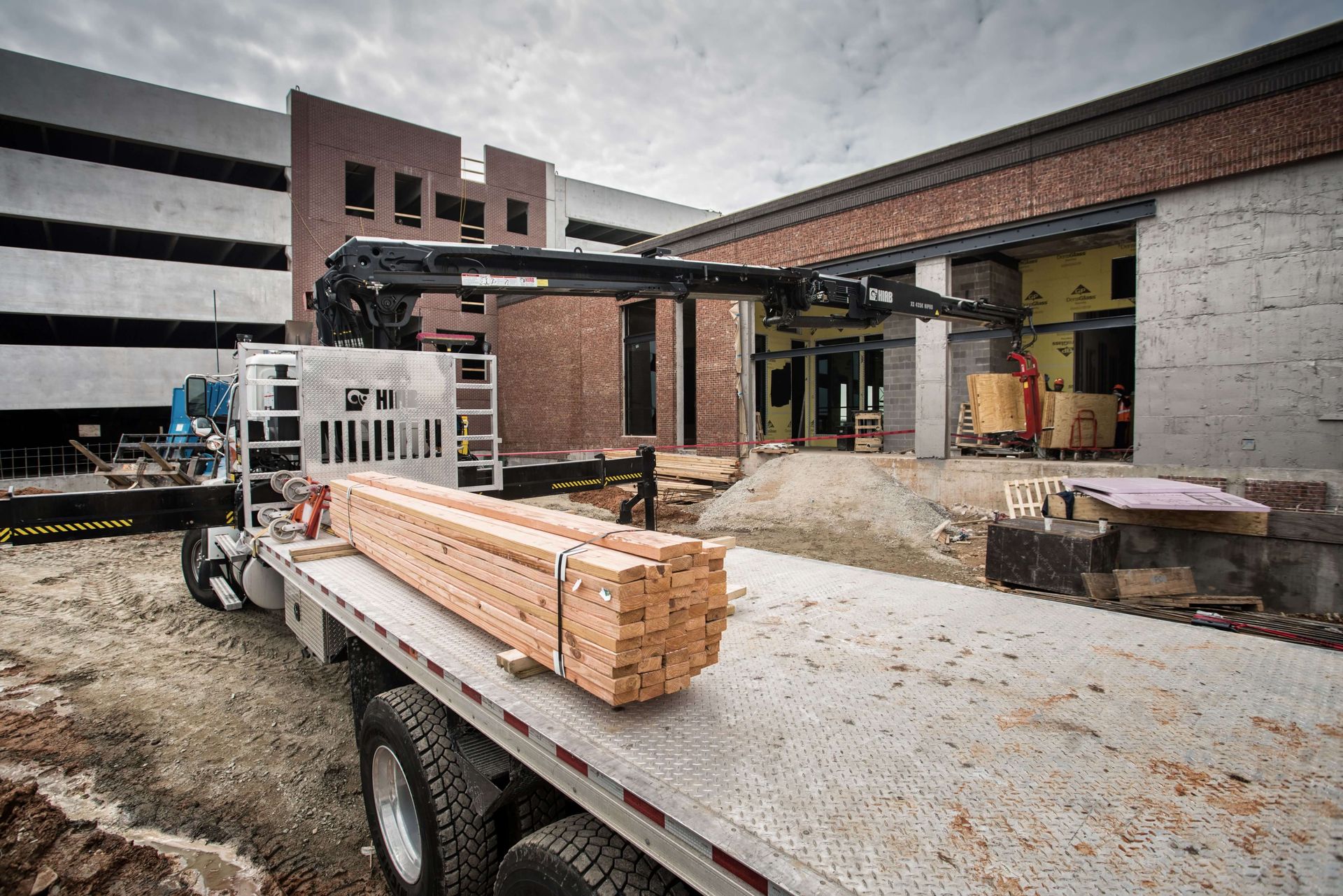

Lumber Crane

Operators throughout North America have acclaimed HIAB K-HiPro 285-3, 425K-4, and 505K-2-4 as the best lumber cranes on the market for the delivery of lumber and building materials. These cranes have been designed and built from the ground up to provide low crane weight, high lifting capacities, and the best load handling characteristics in their class.

The HIAB K-HiPro 285-3, the next generation version of the four story crane, offers a vertical reach of 64’ 3” and a lifting capacity of 188,050 ft-lbs. For access to the 6th story, the HIAB K-HiPro 425-4 offers a 74’ 4” vertical reach with a 245,900 ft-lb capacity. The HIAB K-HiPro 505-2-4 offers a full nine stories - 94’ 4” of vertical reach and a lift capacity of 296,600 lb-ft.

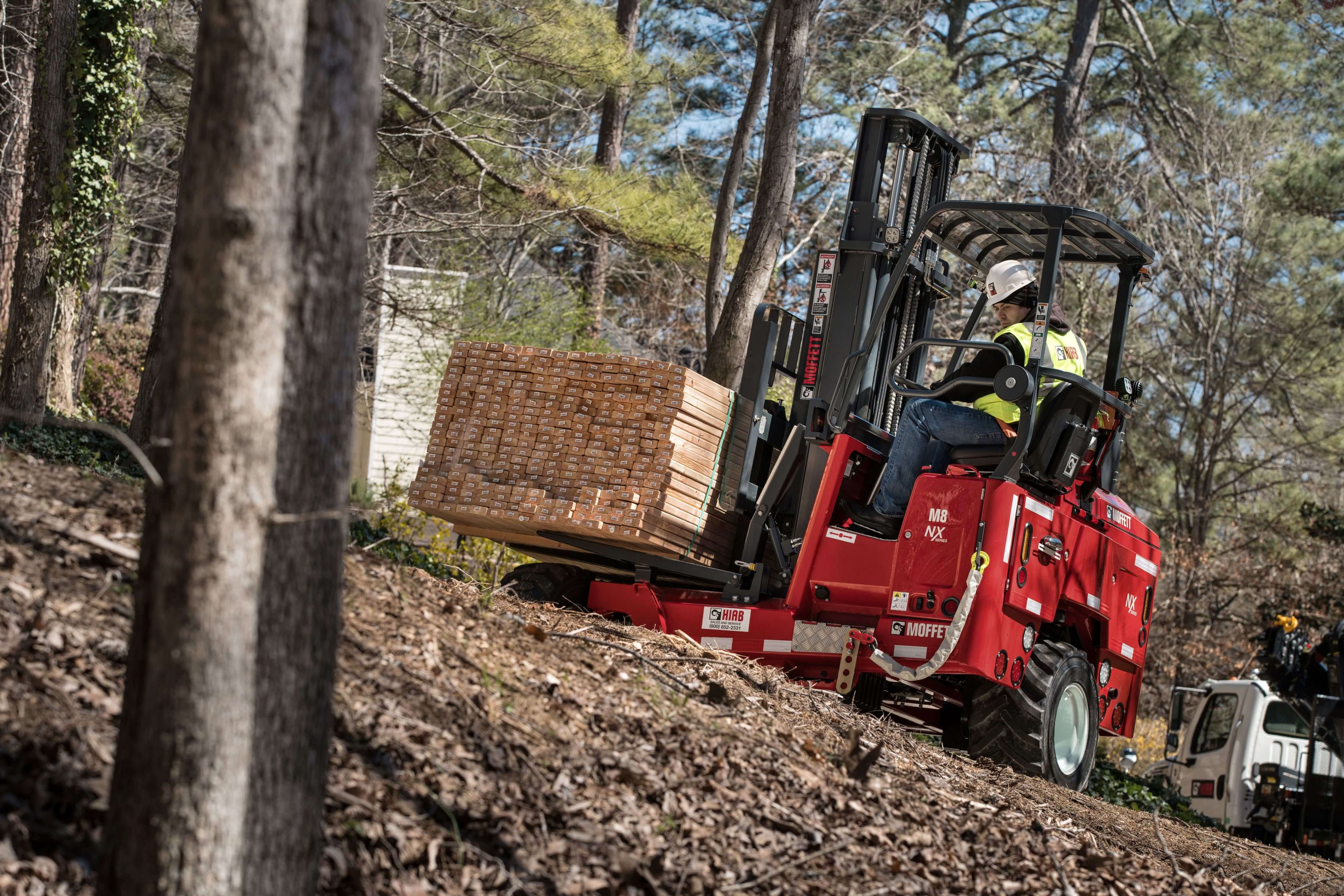

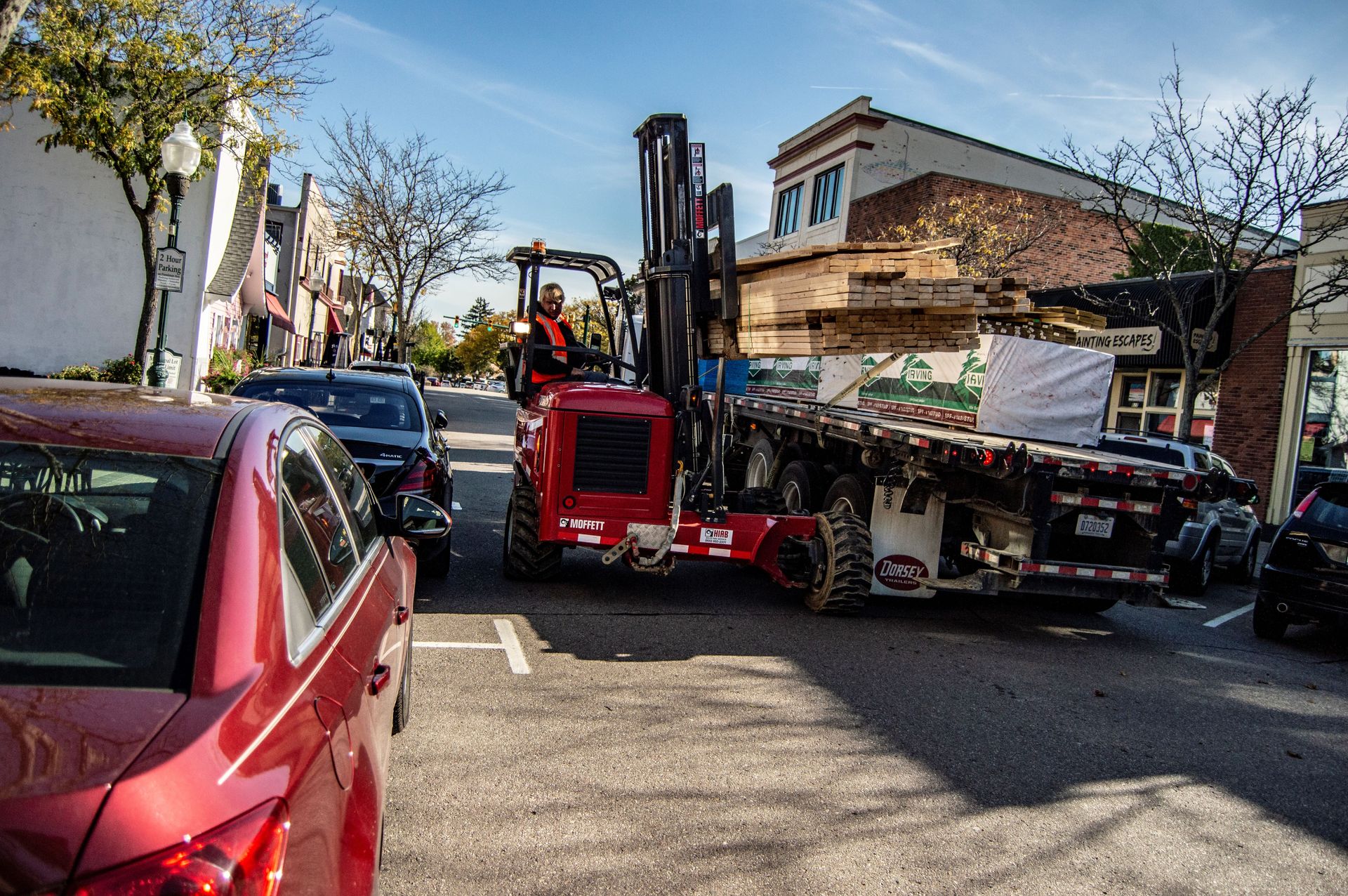

Truck Mounted Lumber Forklift

As the market leader in truck mounted forklifts for over 40 years, Hiab continually invests in industry research and product development with a philosophy of “machines for applications.” The MOFFETT is a powerful, all-wheel drive, truck mounted forklift specifically designed for delivering lumber and building materials to construction sites and restricted residential areas. Transported on the rear of straight trucks, dump beds, or trailers using the MOFFETT Smooth Ride mounting kit, it can be mounted or dismounted in less than a minute. At the delivery location, the driver has the ability to quickly unload the vehicle, travel over rough terrain or across developed landscape, and place the product where needed. With its 5,500 lb capacity, the MOFFETT M8 55.3 and M8 55.4 are the perfect solutions for all of your lumber and building material delivery needs. When it comes to ensuring a smooth and efficient flow of materials between you and your customers, the MOFFETT lumber forklift lets your driver make more deliveries, in less time, with more satisfied customers.

Lumber Videos

Knuckle Boom Crane Features

HiConnect Remote Connectivity HiPro Control System Variable Stability Limit Load Stability System Crane Tip Control Semi Automatic Folding CombiDrive3 Remote Control

HiConnect Remote Connectivity

HIAB HiConnect™ is a web-based dashboard that displays insights on equipment usage, location, time in operation, idle time, and productivity level. By enabling new insights, it helps you to further increase efficiency, productivity, and safety. HiConnect is the latest technology in terms of connectivity capabilities. Being able to remotely access data is key to maximizing your business with facts instead of assumptions. HiConnect maintains constant contact with all units, giving fleet managers the ability to stop unsafe behavior and usage before an incident happens. With the ability to view service history and plan upcoming services, your fleet has minimum downtime and increases daily efficiencies.

HiPro Control System

The HiPro control system with Overload Protection (OLP) is standard on all K-Cranes and brings an unprecedented level of safety to operations without reducing performance. When approaching an overload condition, the crane gives an audible and visual signal at 90% and will stop all radius increasing functions once full capacity has been reached. Automatic Speed Control (ASC) reduces dynamic loading by progressively reducing the speed of the crane when the capacity is between 80% and 100%, preventing operators from performing unsafe, abrupt movements.

Variable Stability Limit

HIAB’s Variable Stability Limit system (VSL) monitors the truck’s stability by registering the extension of stabilizers and monitoring the pressures at each leg to determine the maximum safe capacity of the crane, allowing for higher capacities in situations where the legs are not able to be fully extended. VSL and VSL Plus are available on all Hiab K-HiPro cranes (285, 425 and 505) with VSL Plus available for the 505, which compensates for the weight of the load on the truck, offering even greater lifting capacities, increasing the efficiency of any business.

Load Stability System

Load Stability System (LSS-V) provides smoother, more precise vertical boom motions. If an operator performs a hard stop while raising or lowering a load, the LSS-V system controls boom movement, minimizing the bouncing of the boom and load, while preventing load damage and unnecessary stress on the crane’s components. This feature works in the background to smooth out boom functions allowing for easier placement of the load, making deliveries faster and more efficient. By controlling boom movement and minimizing the bounce of the boom, the structural stress is reduced, thus increasing the expected service life of the crane.

Crane Tip Control

Crane Tip Control (CTC) is an optional feature available for the 285 and 425 cranes. It allows the crane’s controls to be controlled by three levers – the horizontal extension from the truck, the vertical lift, and the rotation of the crane. CTC provides a simplified operation, reducing training time when onboarding new operators, while allowing operators to perform complex techniques safely and efficiently.

Semi Automatic Folding

Semi Automatic Folding (SAF) simplifies the stowing process reducing it to a single-lever operation, protecting the crane and the truck from damage. It allows a single lever operation to fold and unfold the crane, while activating just one lever, which greatly simplifies this frequent routine operating task.

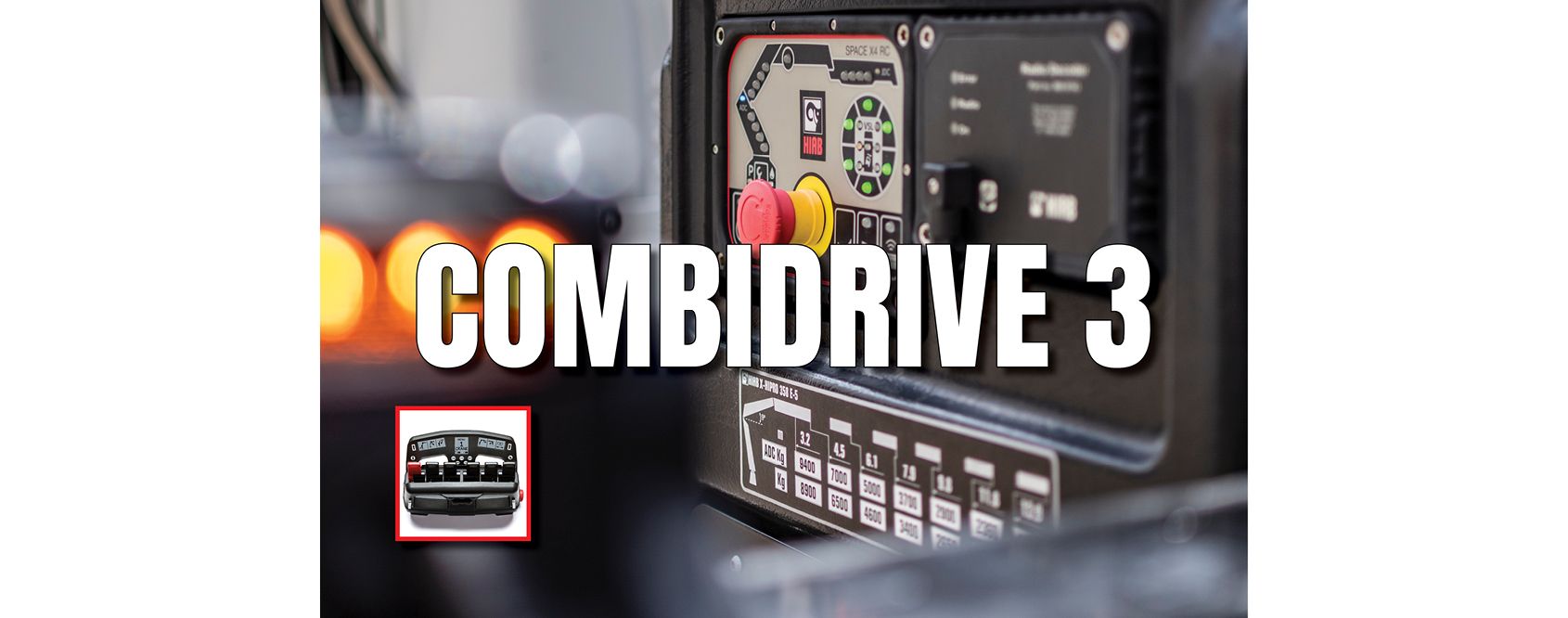

CombiDrive3 Remote Control

The HIAB CombiDrive3 remote control increases efficiency by giving the operator freedom of movement to use the best possible position to view the load. It comes standard with a 100%, 70%, or 50% speed switch. This feature allows the operator to easily change the speed of the crane - especially useful when adjusting heavy loads at long outreaches. The HIAB CombiDrive3 remote control is reliable and worry-free industrial component designed to last the life of the crane.

Truck Mounted Forklift Features

Remote Ground Mount Seat Belt Alarm Full Single-Side Off-Loading Four Way Travel Nationwide Service Team Regional Parts Distribution Industry Leading Warranty Hiab HiConnect™

Remote Ground Mount

Remote Ground Mount (RGM) allows the operator to completely mount or dismount the MOFFETT without the need to climb onto or off of an elevated forklift. With up to a 25' range, the wireless remote control allows the operator to stand away from the machine and traffic during the mounting and dismounting process. This means staying out of the line of traffic or other jobsite hazards while giving optimal visibility during the mounting/dismounting process.

Seat Belt Alarm

The seat belt drive-interlock system now has additional alarm options to improve operator safety. The machine is now fitted with alarms, which trigger if the seat belt is not fastened and/or if the side door is not closed in the correct order. The seat presence alarm system is designed to help ensure operators wear the seat belt properly by invoking a 15 second delay if the seatbelt is fastened before the operator enters the seat.

Full Single-Side Off-Loading

Full capacity, single-side offloading is achieved using MOFFETT's Pantograph and patented Lift Assist System™ that allows the forks to reach completely across the deck of the truck or trailer and lift or place a full capacity load, while still maintaining the tilt and side shift functionality of the mast. This eliminates the need to move the truck and trailer from one side of the road to the other to complete the offloading process.

Four Way Travel

Four way steering allows the forklift to operate safely in 4 directions: forward and back as well as left and right. This allows the operator to transport long loads in a much smaller space by carrying the load parallel to travel, eliminating the need to find alternate routes due to obstructions.

Nationwide Service Team

We have invested heavily in our Nationwide Service and Support team as part of our commitment to our customers. With 28 branch locations and over 200 factory-trained mobile service technicians, your MOFFETT is protected with an unrivaled coast-to-coast service network, greatly reducing the downtime of your MOFFETT, thus reducing overhead costs.

Regional Parts Distribution

Our extensive stock of parts at our Regional Distribution Center ensures next-day delivery on almost all items, reducing downtime and saving you money. The same team you trust to deliver high-quality (premium) products to your exact requirements can also be trusted to keep you moving.

Industry Leading Warranty

The MOFFETT truck mounted forklift holds the industry's leading warranty. With a fully comprehensive 2 year/2000 hour warranty*, rest assured your MOFFETT will be up and running when you need it the most. Our engine warranty is second to none and backed 100% by the manufacturer. *Poultry Excluded

Hiab HiConnect™

Hiab HiConnect™ is a web-based dashboard that displays insights on equipment usage, location, time in operation, idle time, and productivity level. By enabling new insights, it helps you to further increase efficiency, productivity, and safety. HiConnect is the latest technology in terms of connectivity capabilities. Being able to remotely access data is key to maximizing your business with facts instead of assumptions. HiConnect maintains constant contact with all units, giving fleet managers the ability to stop unsafe behavior and usage before an incident happens. With the ability to view service history and plan upcoming services, your fleet has minimum downtime and increases daily efficiencies.

DOWNLOAD OUR BUYING GUIDE

Whether you know exactly what you're looking for, or you are looking for more information on our product lines, download our first time buyer's guide for more information.

DOWNLOAD BUYERS’ GUIDES

Lumber Forklift & Crane Attachments

Download our lumber forklift and crane attachment data sheets for more information.

View Knuckle Boom Crane Attachments

View Truck Mounted Forklift Accessories

Kinshofer KM461 Hydraulic Fork Attachment.pdf

Kinshofer KM461 Low Profile Hydraulic Fork Attachment.pdf

Kinshofer KM920-5_KM920-4 Hydraulic Hook.pdf

Lumber Challenges

Safety Efficiency Downtime Training Reliability Revenue

Safety

Hiab’s industry leading technology provides world class, industry leading safety features that keep operators safe and in control, minimizing risk to individuals or the environment. With the smart technology solutions of Hiab’s knuckle boom cranes, human driven errors and unsafe operations are reduced.

Efficiency

Hiab’s advanced technology drives the performance of the equipment resulting in superior operation efficiencies. Hiab’s class-leading products can not only be used by operators of different skill levels, but are also helpful with everchanging resources, supporting business efficiency and increasing productivity.

Downtime

Hiab’s renowned reliability combined with industry leading safety features and control systems is proven to reduce downtime, while our nationwide service network ensures that equipment is maintained with minimal oversight.

Training

Training and educating operators takes time, but Hiab’s advanced control systems and technology allows customers to manage their resources in the best way, whether the operator is highly experienced or a new employee without losing too much time.

Reliability

Hiab knuckle boom cranes are the industry leaders in the area of reliability. Our premium engineering and cutting edge operation management features ensure optimum longevity and service life of your equipment. All backed up with the most comprehensive warranty in the market.

Revenue

Hiab knuckle boom cranes provide many cost benefits that are ideal for businesses with repetitive, efficient operations. With a reliable design, quality materials, game changing smart technology, and industry specific innovation, investing in Hiab equipment provides a total package for any industry.

Industry Leading Warranties

Saying you are confident in your product is one thing, warranting it is another. All Hiab equipment comes with a 2-year warranty on the entire product. Further warranty on the structural parts is extended to 5-years on Cranes and 3-years on Loaders. Meaning, Hiab covers repair or replacement of components for 2-years on all components and up to 5-years on main structural components. There's no better or more comprehensive warranty in our Industry! Certain normal exceptions, such as replacement of consumables, apply.

Download our product Specific Warranty Statements to find out more.

Hiab Knuckle-Boom - Warranty Brochure.pdf

Hiab Knuckle-Boom - Warranty Statement Summary.pdf

Moffett - M Series - Warranty Statement Summary.pdf

View All Operator's Manuals

Click through to view all Operator's Manuals for our equipment.

Click Here
